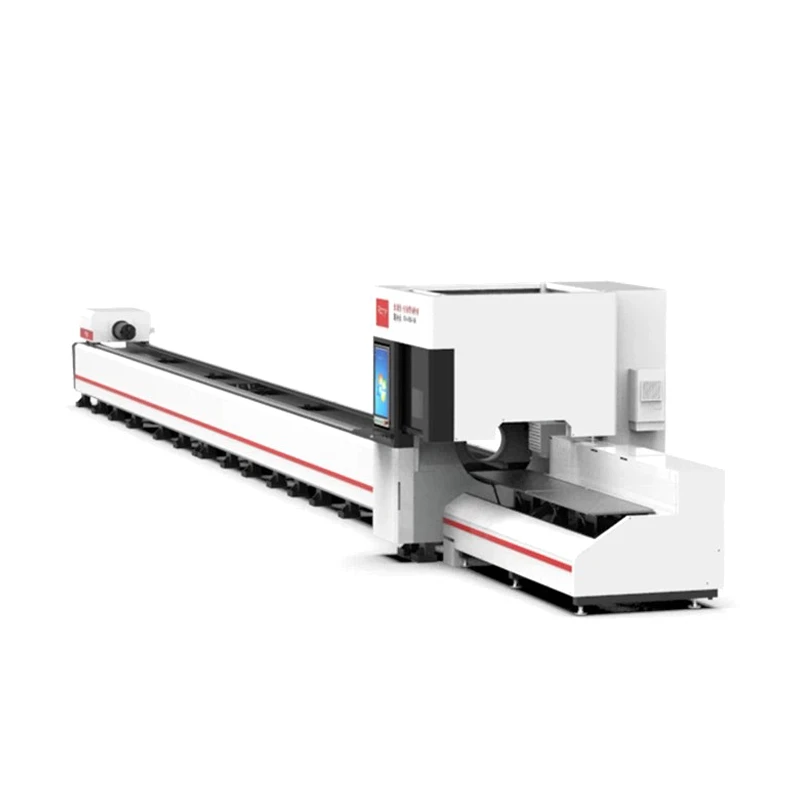

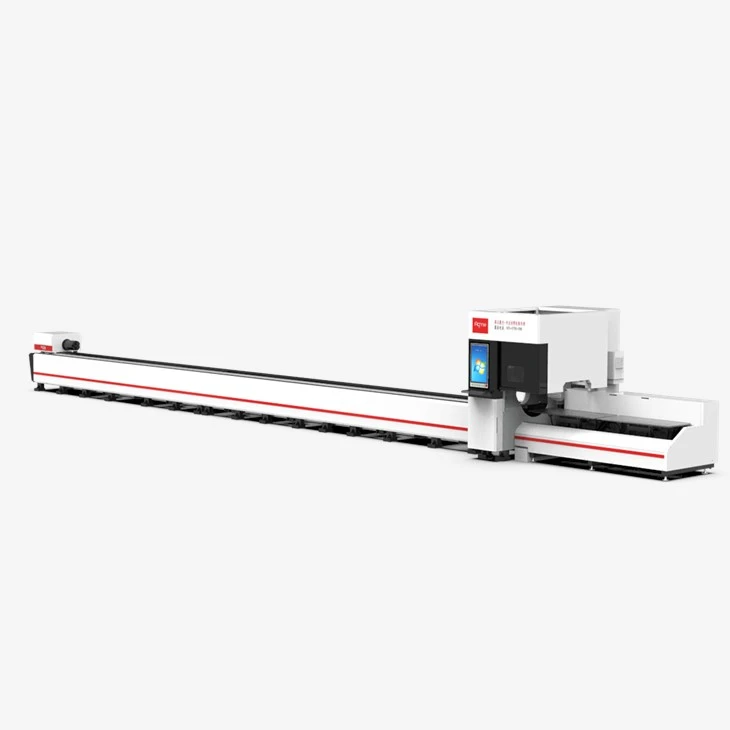

3000W Tube Laser Cutter
Video for 3000W Tube Laser Cutter
Daim duab rau 3000W Tube Laser Cutter
Configurations & Technical Parameters rau 3000W Tube Laser Cutter
| Tsis muaj. | Lub npe | Hom |
| 1 | Yam khoom No. | LT-12025ES |
| 2 | Laser Source | MAX/Raycus/IPG |
| 3 | Laser Txiav Lub Taub Hau | OSPRI LC40 |
|
4 |
Txiav Control System | CYPCUT FSCUT 5000 |
| 5 | Nesting System | CYPCUT TubesT Nesting System |
| 6 | Pneumatic Chuck | 250 hli |
| 7 | Servo Tsav & Tsav Tsheb | Nyiv Yaskawa / Panasonic |
| 8 | Rail & Rack | Taiwan HIWIN / TAIWAN YYC |
| 9 | Reducer | Nyiv Shimpo / Fabkis Motoreducer |
| 10 | Dej Chiller | Hanli |
| 11 | Tube Length | 12m |
| 12 | Txais Platform | 6m/9m/12m |
| 13 | Hluav taws xob qhov chaw |
Fabkis Schneider
|
| 14 |
Pneumatic yam
|
Nyiv SMC
|
| 15 | Txhawb nqa | Servo Floating Support |
|
16 |
Qhov siab tshaj plaws txav ceev | 120m / min |
| 17 | Positioning raug | ± 0.03/1000mm |
| 18 | Rov ua qhov tseeb qhov tseeb | ± 0.02/1000mm |
| 19 | Txiav Gas | Cua, Oxygen, Nitrogen |
| 20 | Fais fab mov | 380V / 60 Hz (tuaj yeem ua tshuab nyob ntawm koj qhov Voltage) |
Tshuab Tshuab Part
Pneumatic Chuck
Muaj 120mm, 170mm, 250mm, 350mm Pneumatic chuck rau kev xaiv.
Cov raj me me siv me me 120mm chuck, zoo li kev lag luam rooj tog hlau, kev sib hloov ceev ceev thiab txiav ceev.
Cov raj loj siv loj 250 lossis 350mm chuck, zoo li kev lag luam elevator, ntau qhov hnyav hnyav tuaj yeem tuav cov raj loj.
Lub tshuab no yog nruab nrog 250mm chuck thiab 12m tshuab txaj.
OSPRI Auto-Focus Laser Txiav Lub Taub Hau
All-optical thiab lub cev dej txias. Peb daim iav tiv thaiv yog nruj me ntsis plua plav-pov thawj.
Servo Floating Support
- Nws tuaj yeem txhawb nqa cov kav dej ntawm 20-250mm thiab qhov chaw nws tus kheej rau ntau cov kav dej.
- Muaj zog txhawb nqa thiab bearing. Ib qho kev txhawb nqa rau cov pa yeeb nkab fittings tuaj yeem ncav cuag 120Kg, thiab ib qho kev txhawb nqa rau cov yeeb nkab hnyav hnyav tuaj yeem ncav cuag 330Kg.
- Kev soj ntsuam zoo, kev noj zaub mov zoo dua.
Kev lag luam thov
3000W Tube Laser Cutter yog dav siv nyob rau hauv kev lag luam khoom noj khoom haus, electricity chaw, tsev kawm ntawv cov khoom, elevator, hlau rooj tog khoom, guardrail handrail, tshaj tawm, steel qauv, hlau chav ua noj, nkoj tsim, hlau ua kev lag luam, tshiab zog tsheb thiab lwm yam.
