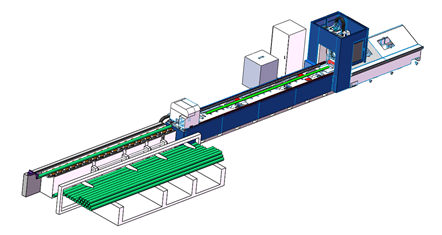

Tube laser tej tshuab LT-6020 adopts feem ntau sophisticated fiber ntau laser IPG, combining tus kheej tsim Gantry CNC tshuab thiab siab zog vuam lub cev. Tom qab kub siab kub thiab ua kom tiav ntawm CNC loj milling tshuab GOLCAR, nws muaj zoo rigidity thiab stability nrog txawv teb chaws precision thiab siab ceev, linear daim ntawv qhia tsav, high-speed servo tsav. Aluminium nqaj, tshav kub kho txheej txheem, siab zog, lub teeb yuag, zoo rigidity. Nws yog tsuas yog rau kev txiav tawm hauv 20 hli tuab hlau hauv kev kub ceev thiab siab precision.

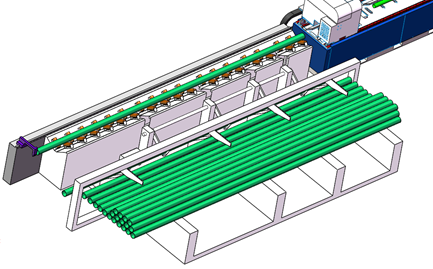

I. Automatic Thawv Loader
1.Automatic nras loader rau kev xaiv. Txuag kev mob siab thiab kev thauj khoom lub sij hawm, ua tiav lub hom phiaj loj 2. Cov kav yeeb nkab, cov yeeb nkab thiab lwm kav xa tuaj yeem tuaj yeem ua qhov chaw ntsiag to, tsis muaj phau ntawv 3.Txhua lus. Lwm cov duab yeeb nkab tuaj yeem yog cov semi-automatic feeding artificially. 4.Max Chaw Thau Khoom Ntim 800 × 800 hli 5.Max Chaw Thoob Ntoo Nroj Ntoo Nyhav 2500kg
|
| |
II. automatic nrig loading txij qab | Nws muaj kev ua haujlwm zoo dua hauv kev ntsug sijhawm dua li sab nraum cov khoom |
III. dynamic cua chuck
1. Chuck los ntawm kev hloov txoj kev siv roj, qhov sib txuas ntawm plaub-lub puab tsaig uas sib txuas, kev txhim kho kom zoo dua Cheng stroke ob tog. 2. Txiav txawv diameters, qhov sib txawv ntawm cov yeeb nkab rau hauv kev mus txawv tebchaws (ob leeg mob stroke 80mm), tsis tas yuav hloov kho lub puab tsaig yooj yim thiab nruab nrab. 3. Hloov tau yooj yim ntawm cov kab ntawv sib txawv, ib qho teeb meem txuag teeb sijhawm.
| |
IV. Sib txauv ua ke
1. Raws li tag nrho cov phaj welded txaj, 2. Kev txav mus txig ua kom zoo dua qub kom muaj concentricity ntawm cov khoom, ntsug, precision installation ceev thiab zoo. 3. Tag nrho cov qauv yog kev cog lus muaj nqis. | |
V. XEES THIAB TXAIS
Tsis yog. | Lub npe | Hom |
1. | Laser qhov chaw | Lub teb chaws Yelemees IPG |
2. | Lub taub hau | Raytools / Precitec |
3. | Txiav kev kaw lus | Lub teb chaws Yelemees PA8000, Lantek / Gamma nesting software |
4. | Hluav taws xob tswj | Schneider |
5. | Pneumatic Control | SMC lossis Airtac |
6. | Tawm taw kev | Taiwan Hiwin |
7. | Iav thiab khib | Taiwan YYC |
8. | AC servo tsav thiab tsav tsheb | Yaskawa |
9. | Reducer | Fabkis MOTOVARIO |
10. | Chiller | Tongfei |
11. | Chuck | Pneumatic chucks, automatic centering |
12. | Plua plav tawm thiab pom cov khoom siv | Yeem xaiv |
13. | Tsis siv neeg pub khoom | Yeem xaiv |
VI. SAMPLES
VII. TXHEEJ XWM TXHEEM
20000 SQUARE METER HOOBKAS
TUS THAWJ HIGH PRECISION MILLING CENTER RAU COV TSIM TXHUA YAM
