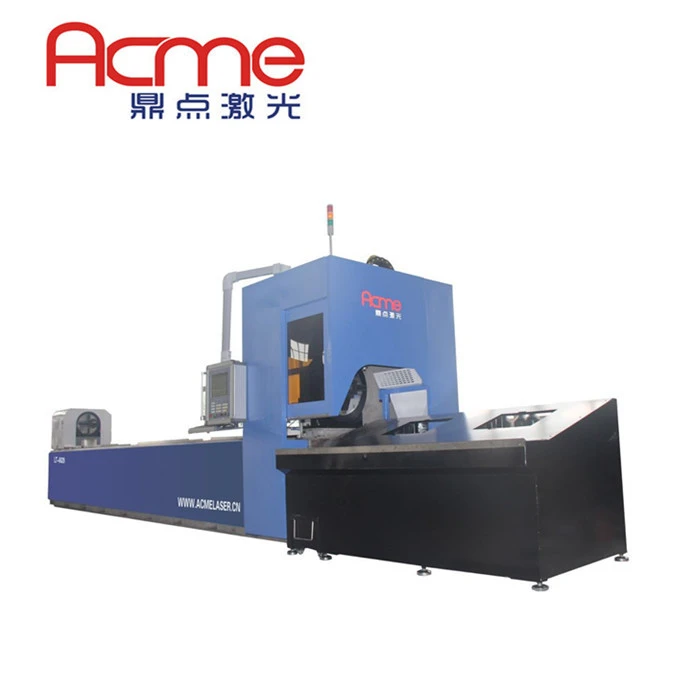

PEEV MUAJ HOM TSIS TXAUS LASIS YEEJ YUAV TSIS TXHOB TES: Cov hlau no siv lub tshuab ua hluav taws xob los ntawm 220mm OD 6000mm ntev hlau hlawv thiab kav dej.
KHOOM CAPABILITIES : Nrog nws lub peev xwm los ua cov ntaub ntawv muaj peev xwm ua tau, fiber optic tube laser tsis tuaj yeem txiav cov khoom siv xws li hlau, stainless hlau, thiab txhuas, tiam sis nws tseem tuaj yeem txiav tooj, tooj dag, tooj liab, thiab cov yeeb nkab.
I. Automatic Thawv Loader
1. Automatic nruas loader rau kev xaiv. Txuag kev mob siab thiab kev thauj khoom lub sij hawm, ua tiav lub hom phiaj loj 2. Hloov cov yeeb nkab, cov yeeb nkab thiab lwm kav xa tuaj yeem tuaj yeem ua qhov chaw ntsiag to, tsis muaj phau ntawv 3. Kev Tshawb Fawb. Lwm cov duab yeeb nkab tuaj yeem yog cov semi-automatic feeding artificially. 4. Max Loading Bundle 800 × 800mm 5. Max Chaw Nres Nkawm Nyhav 2500kg
|
|
II. dynamic cua chuck
1. Chuck los ntawm kev hloov txoj kev siv roj, qhov sib txuas ntawm plaub-lub puab tsaig uas sib txuas, kev txhim kho kom zoo dua Cheng stroke ob tog. 2. Txiav txawv diameters, qhov sib txawv ntawm cov yeeb nkab rau hauv kev mus txawv tebchaws (ob leeg mob stroke 80mm), tsis tas yuav hloov kho lub puab tsaig yooj yim thiab nruab nrab. 3. Hloov tau yooj yim ntawm cov kab ntawv sib txawv, ib qho teeb meem txuag teeb sijhawm.
| |
III. Sib txauv ua ke
1. Raws li tag nrho phaj welded txaj, welded los ntawm 16-25 mm tuab phaj phaj, tshuab lub cev hnyav 12t 2. Kev txav mus txig ua kom zoo dua qub kom muaj concentricity ntawm cov khoom, ntsug, precision installation ceev thiab zoo. 3. Ua kom sov thiab tso tshuaj kho mob | |
IV. YAM KEV TXAWJ THIAB KEV KHO MOB
Tsis yog. | Lub npe | Hom |
1. | Laser qhov chaw | Lub teb chaws Yelemees IPG |
2. | Lub taub hau | Raytools / Precitec |
3. | Txiav kev kaw lus | Lub teb chaws Yelemees PA8000, Lantek / Gamma nesting software |
4. | Hluav taws xob tswj | Schneider |
5. | Pneumatic Control | SMC lossis Airtac |
6. | Tawm taw kev | Taiwan Hiwin |
7. | Iav thiab khib | Taiwan YYC |
8. | AC servo tsav thiab tsav tsheb | Yaskawa |
9. | Reducer | Fabkis MOTOVARIO |
10. | Chiller | Tongfei |
11. | Chuck | Pneumatic chucks, automatic centering |
12. | Plua plav tawm thiab pom cov khoom siv | Yeem xaiv |
13. | Tsis siv neeg pub khoom | Yeem xaiv |
V. SAMPLES
VI. TXHEEJ XWM TXHEEM
20000 SQUARE METER HOOBKAS
TUS THAWJ HIGH PRECISION MILLING CENTER RAU COV TSIM TXHUA YAM
